Service Desk – Diagnostics-First Support Platform & In-App Vue Widget

System Architecture & Domain Scope

Service Desk is a diagnostics-first, multi-tenant support platform I built solo at Proficient Information Systems. The CEO and company architect set the technical direction (IMAP ingestion, Knockout.js for the visitor surface, the channel model, and product expectations); I planned the work, verified requirements with the client, and implemented and shipped the product. It turns the support inbox into a command center for a portfolio of Vue/Quasar apps, with three intake channels feeding one agent workspace.

Distribution Model

• NPM packages: the agent console, in-app widget and shared composables ship as reusable components (@itc/service-desk), published through the company’s internal NPM system.
• Suite integration: the packages plug into the company suite, so host apps gain support intake by installing the package and registering an app_id.
• Standalone web app: a separate deployment of the same packages for use outside the suite.

flowchart TB
    subgraph Host["Host Vue App (Sanctum)"]
        W["HelpHeaderMount / InAppTicketPanelLayer"]
        T["Telemetry: Axios ring-buffer · router · runtime errors"]
        S["Screenshot capture + annotator"]
    end
    Email["Inbound Email (IMAP)"]
    Form["Public Web Form"]

    subgraph API["Laravel BFF /api/v1/support/*"]
        MW["Widget Middleware: app_id + origin check"]
        REG[("support_widget_apps")]
        SAN["Sanitizer: strip, cap, redact"]
        ING["IMAP Ingress Service"]
        FC["Public Form Controllers"]
    end

    subgraph Data["Persistence"]
        M[("MongoDB: tickets")]
        Q[("MySQL: streams, apps, RBAC")]
    end

    Agent["Agent Console (@itc/service-desk): unified inbox, client_app filter, diagnostics tab"]

    W --> MW
    T --> MW
    S --> MW
    MW --> REG
    MW --> SAN --> M
    Email --> ING --> M
    Form --> FC --> M
    REG --> Q
    M --> Agent

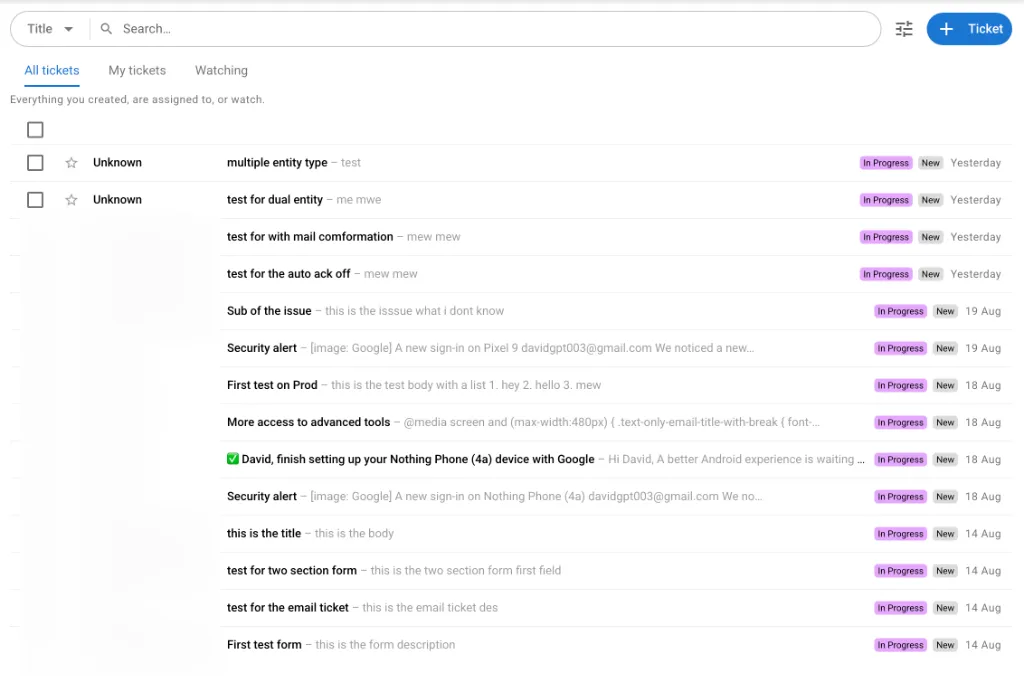

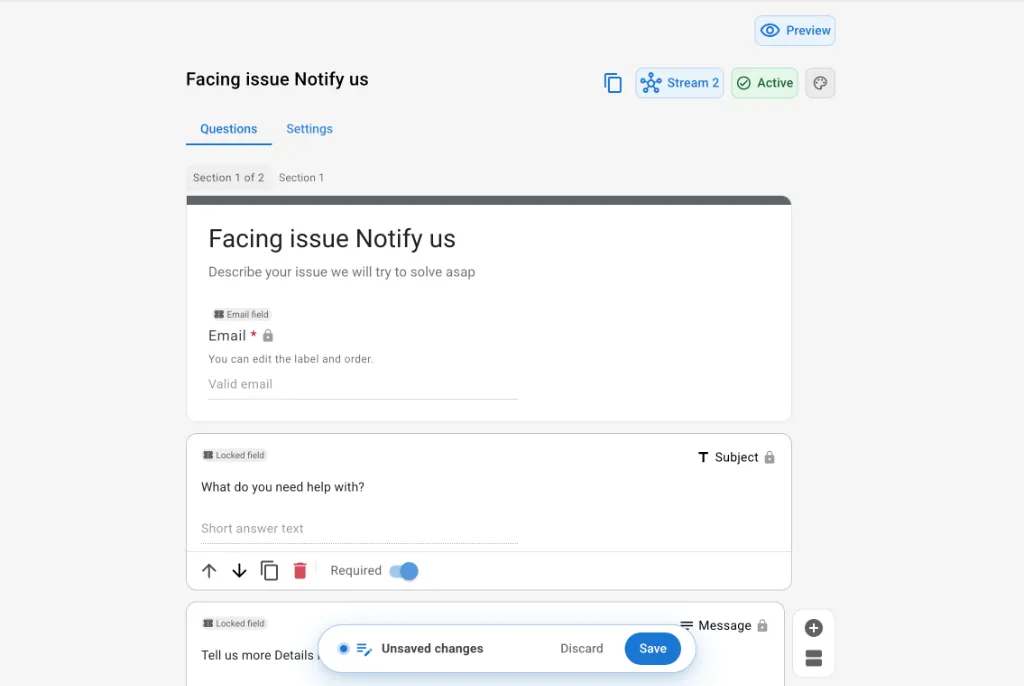

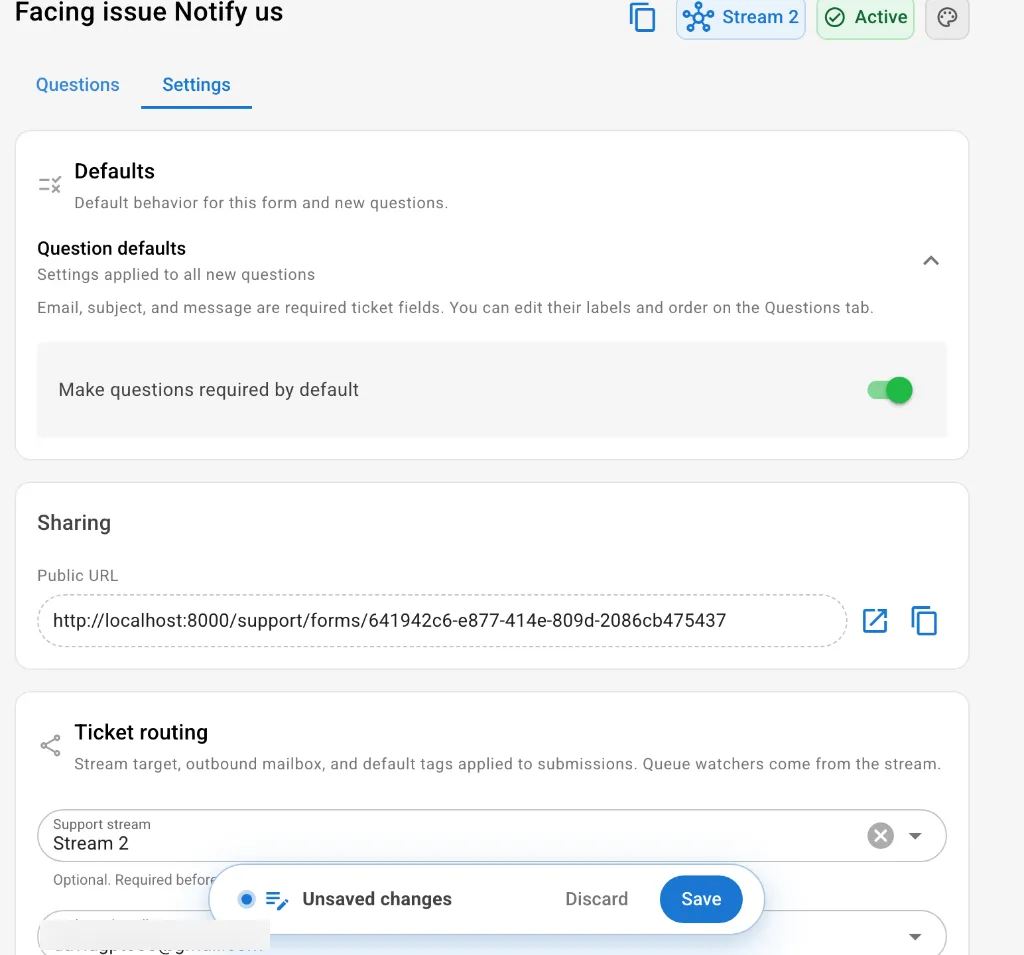

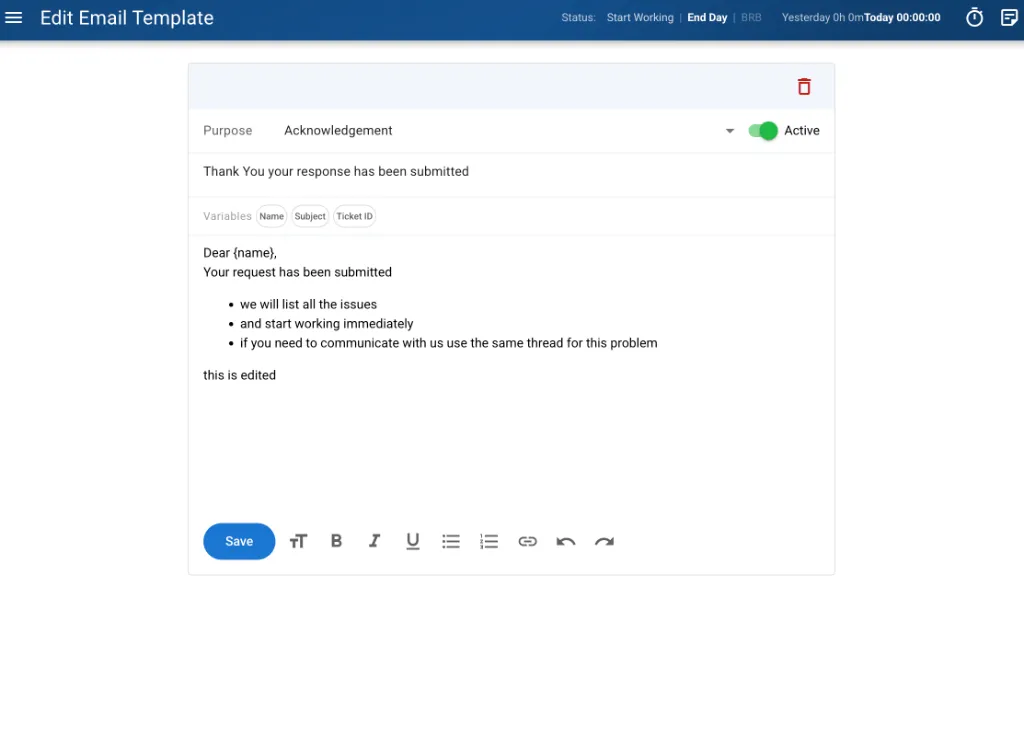

Frontend follows a modular composable architecture (11 authenticated routes under /service-desk/*) with scoped state that resets on tenant switch. The agent console exposes four workbenches: triage inbox, stream queues, form builder and email templates, plus the V1 apps registry.

Persona Value Map

Core Engineering Innovations

1. Database-Driven App Registry (Release V1)

Replaced SERVICE_DESK_IN_APP_STREAM_IDS with a registry table:

support_widget_apps
  id · app_id · support_stream_id (FK → support_streams)
  allowed_origins · is_active · timestamps

Widget middleware on POST /api/v1/support/me/tickets extracts app_id, loads the active record, enforces allowed_origins, and resolves the destination stream. Unregistered or inactive apps return 400 Bad Request. The /service-desk/apps page (SupportWidgetAppsPage, Quasar table plus create/edit modal, validated by FormRequests) lets owners onboard apps with no deploy.

2. Channel Isolation

The middleware applies only to the widget endpoint. IMAP ingestion and public forms keep their native mailbox/form stream mappings, so adding dynamic routing could not regress existing intake.

3. Deterministic Diagnostics Engine (schema_version: 1)

• Environment auto-capture: route fullPath, meta.title, query params, viewport, user agent, locale, timezone, active tenant.
• Runtime pack: ring-buffer of the last 20 Axios requests (latency, HTTP status, backend request_id), trapped window.onerror, unhandled promise rejections and Vue exceptions, with last_failed_api isolated.
• Sanitization pipeline: unmapped keys dropped, size limits enforced, Authorization/Cookie/Set-Cookie/API keys redacted, stored as support.context and a downloadable diagnostics.json.

4. Origin Triage

client_app badge chips on ticket cards and a multi-select filter in ServiceDeskFiltersForm.vue that appends client_app to GET /tickets, isolating one product’s queue inside the shared inbox.

Database Design & Concurrency

• MongoDB stores ticket documents, custom fields and conversation threads (flexible schema, fast reads).
• MySQL stores streams, the app registry, mailbox credentials (encrypted), form schemas, templates, RBAC and audit logs.
• IMAP polling runs on dedicated queue workers with message deduplication and thread matching via In-Reply-To, References and ticket hash, so ingestion never blocks API requests.
• Tenant isolation middleware verifies membership and permissions on every call; granular gates cover support.view, create, edit, assign, delete and config.

Performance Benchmarks & Reliability

V1 release validation: end-to-end lifecycle executed across all three channels (widget with screenshot → correct stream; IMAP email → polled into ticket; public form → assigned stream), plus triage validation that email/form tickets display correctly beside widget tickets under the app filter. Feature tests cover /me/* routes and multi-tenant isolation.

Lessons Learned & Architectural Retrospective

• What worked: scoping middleware to a single endpoint made a routing rewrite low-risk; versioning the diagnostics schema (schema_version) leaves room to evolve the payload.
• Packaging: building reusable NPM components first meant the suite integration and the standalone app shared one codebase instead of diverging.
• Trade-off: the dual-database design buys flexibility but adds operational surface (two engines to back up and monitor).
• Do differently: ship the app registry from day one instead of .env mapping, and add screenshot redaction and the data opt-out tray earlier, since privacy controls matter most for diagnostic capture.
• Next: SLA sweep engine and automated routing (MVP 2), then privacy controls (MVP 3) and Jira/Linear/GitHub sync (MVP 4).
